Taigen ATV 360-Degree Gallery
Specifications
| Specification | TAIGEN SPORTS | TAIGEN |
|---|---|---|
| MOTOR | ||
| Motor Type | Liquid Cooled | Liquid Cooled |
| Motor Peak | Peak 40 kW | Peak 40 kW |
| Configuration | Single Motor | Single Motor |
| Max Motor RPM | 7,500 RPM | 7,500 RPM |
| Peak Motor Torque | 122 Nm | 122 Nm |
| Transmission | Gearbox (High/Low) with Diff Lock, 4×4 | Gearbox (High/Low) with Diff Lock, 4×4 |
| PERFORMANCE | ||
| Gradeability | 45 Degrees | 45 Degrees |
| Top Speed | 90 km/h, Restricted 65 km/h (T3b) | 75 km/h Restricted 65 km/h (T3b) |
| Range in ECO on Flat Road | Up to 130 km | Up to 100 km |
| EPS | Yes | Yes |
| Winch | Yes | Yes |
| Towing Capacity | 1,000 kg Max | 1,000 kg Max |
| Suspension Travel | 9.5 Inch Adjustable Nitro Shocks | 9.5 Inch Adjustable Shocks |
| BATTERY & CHARGING | ||
| Battery | 16.7 kWh | 13.7 kWh |
| Charger | On-board 6.6 kW | On-board 3.3 kW |
| Charging Time (0–100%) | 2.8 Hours | 4.5 Hours |
| DIMENSIONS & EQUIPMENT | ||
| Chassis Dimensions | 2450 × 1290 × 1500 mm | 2450 × 1290 × 1500 mm |
| Ground Clearance | 300 mm | 300 mm |
| Dry Weight | 535 kg | 520 kg |
| Tyres | 27×9-14 / 27×11-14 | 27×9-14 / 27×11-14 |
| Wheels | Alloy Wheels | Metal Wheels |
| Seating Capacity | 2 | 2 |
| TFT Screen | 10 Inch with Car Play | 10 Inch with Car Play |
| Colours | Matte Black, Arctic White, Silver, Olive Green, Twilight Purple, Orange | Matte Black, Arctic White, Silver |

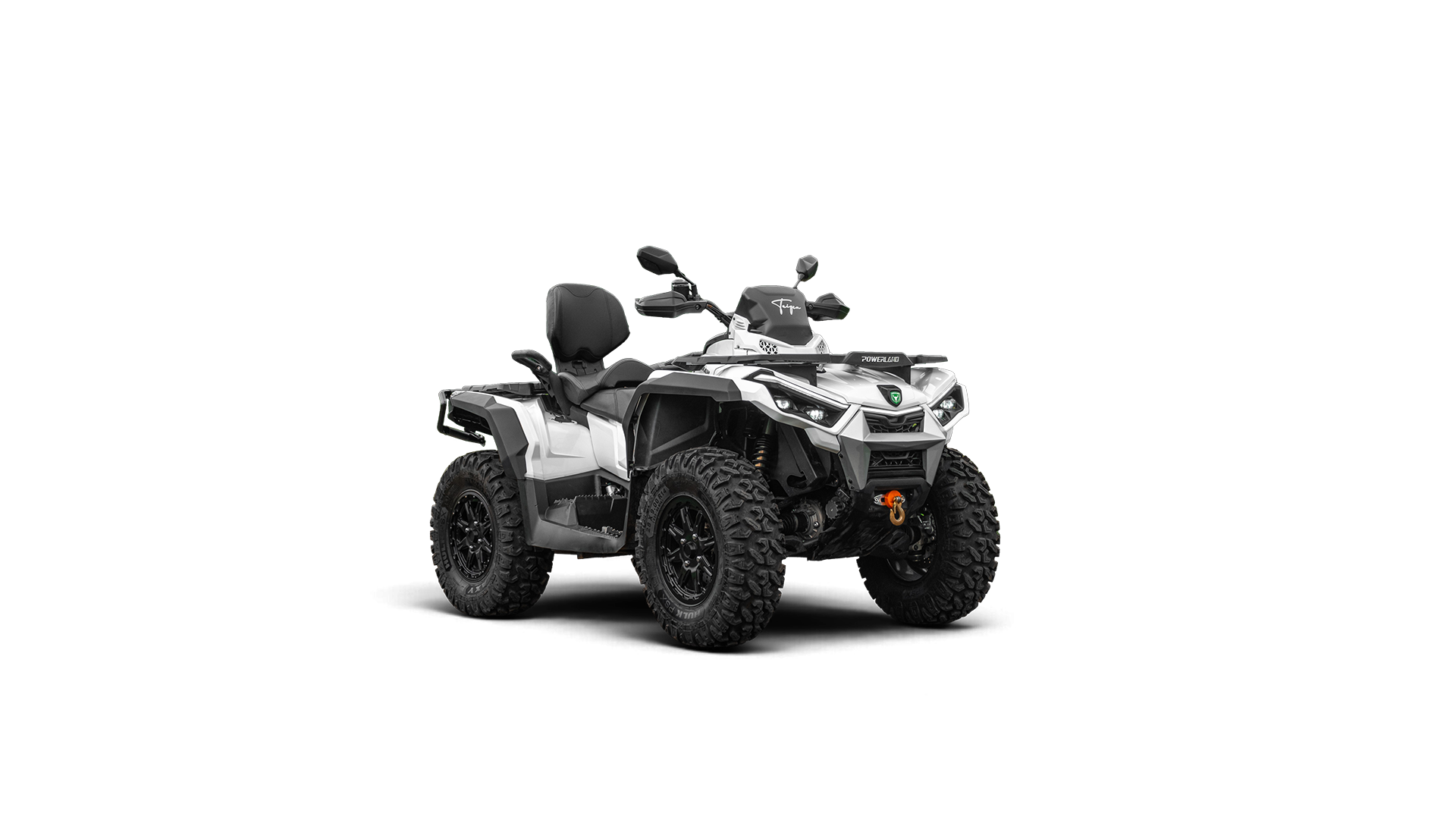

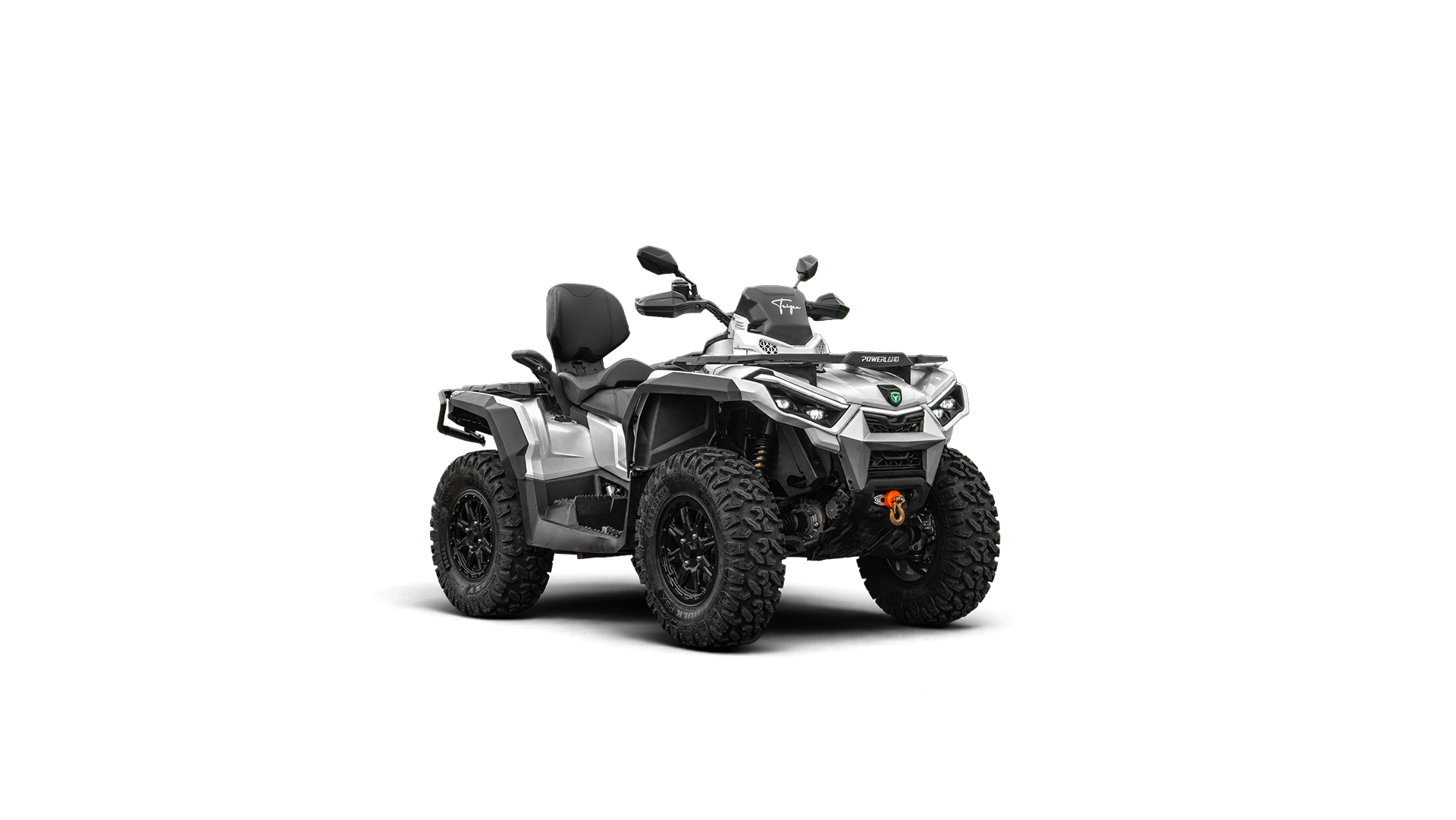

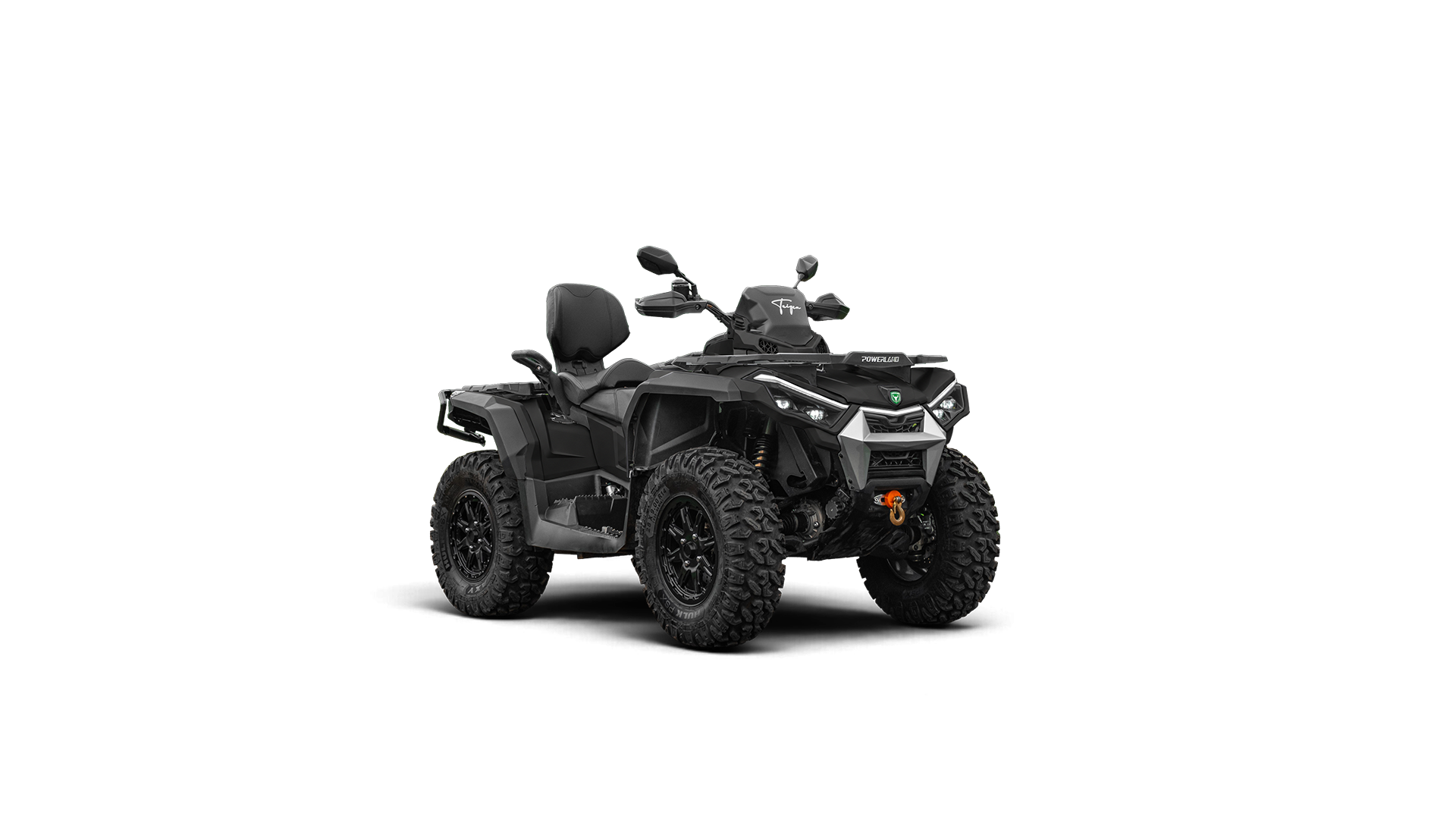

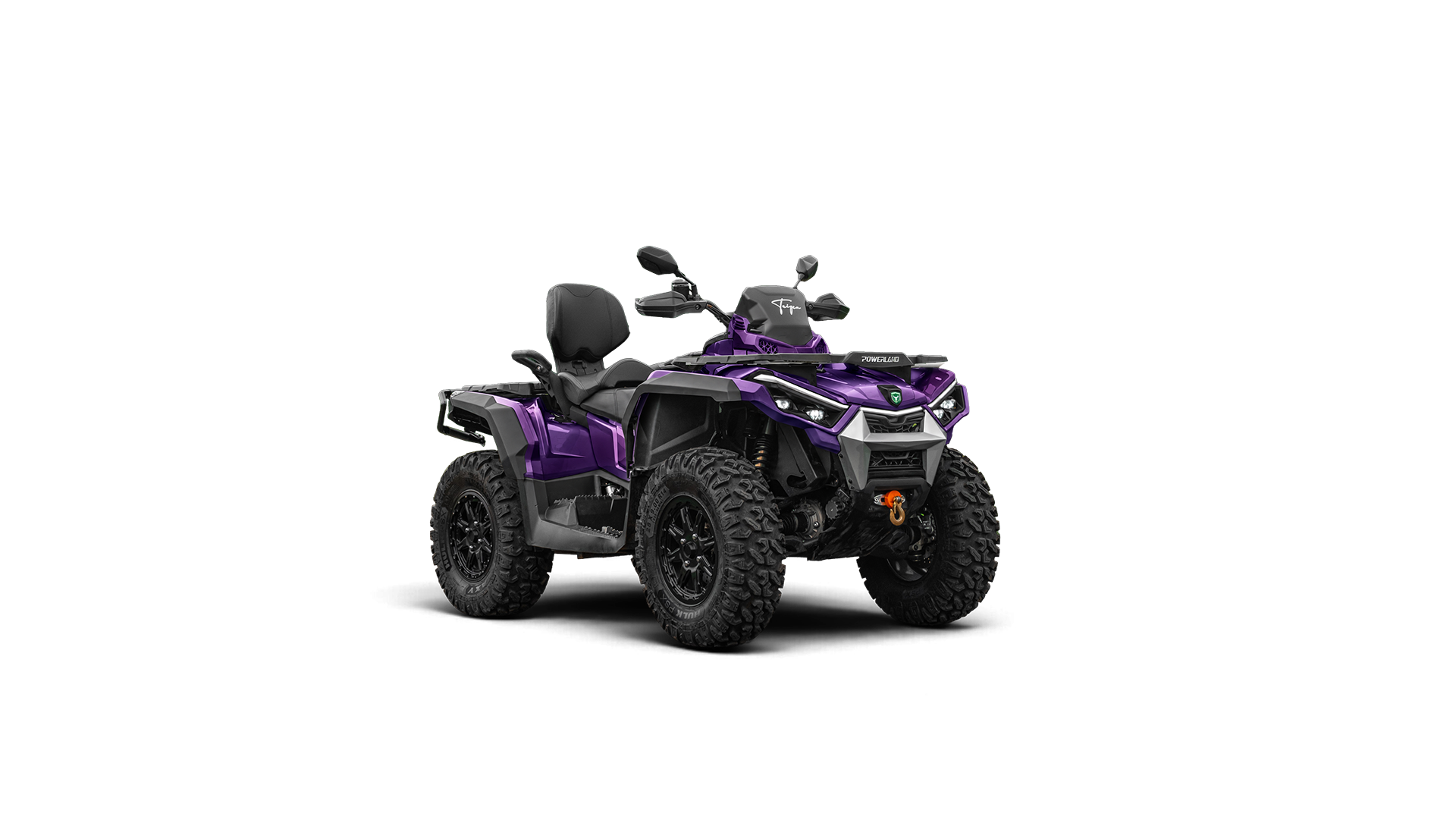

Taigen ATV Colors
VEHICLE FEATURES

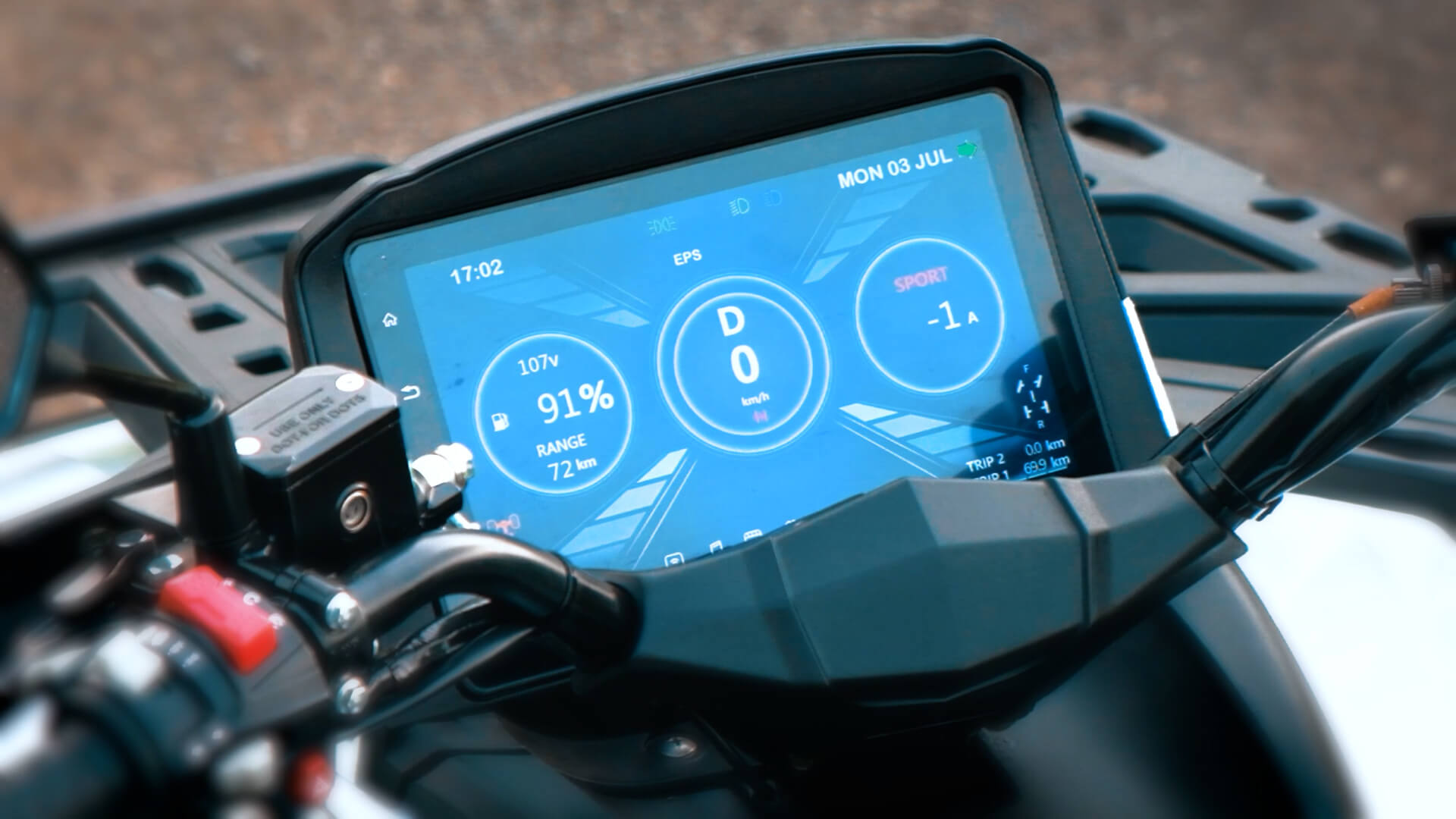

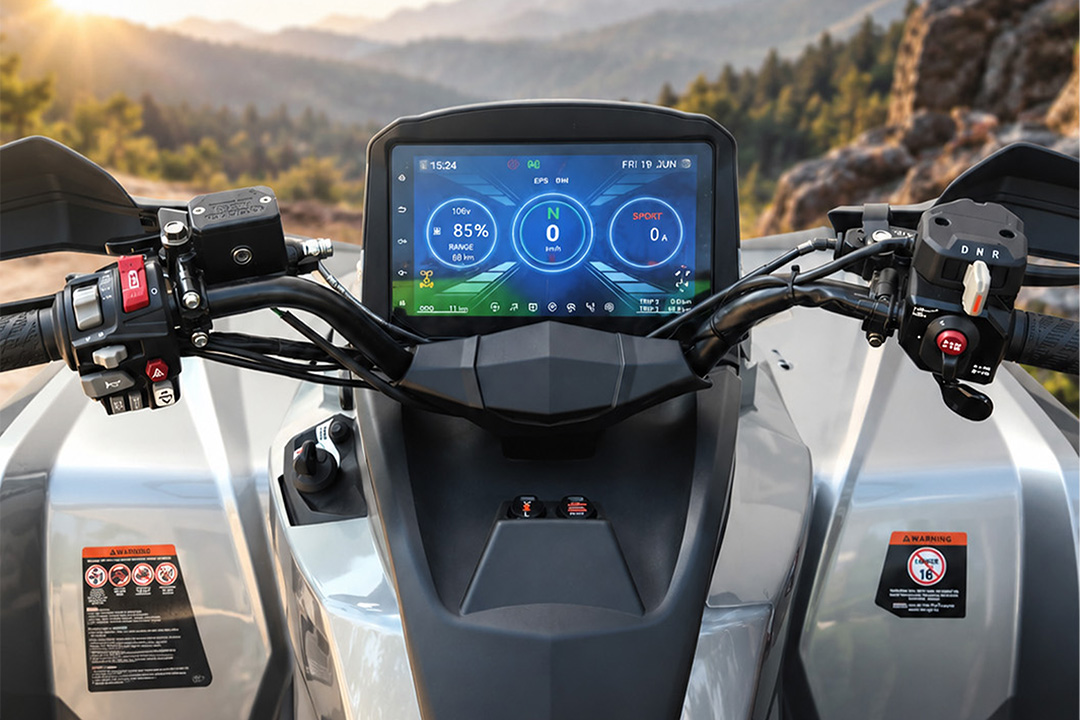

TFT DISPLAY
10" TFT Display with Apple CarPlay & Android Auto : Stay connected on every trail with a bright 10" TFT display featuring Apple CarPlay and Android Auto. Access navigation, music, calls, and essential ride information through a clear, rider-friendly interface.

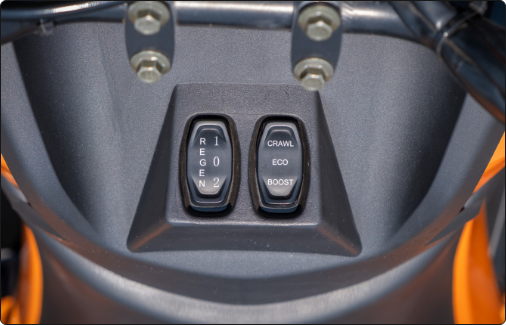

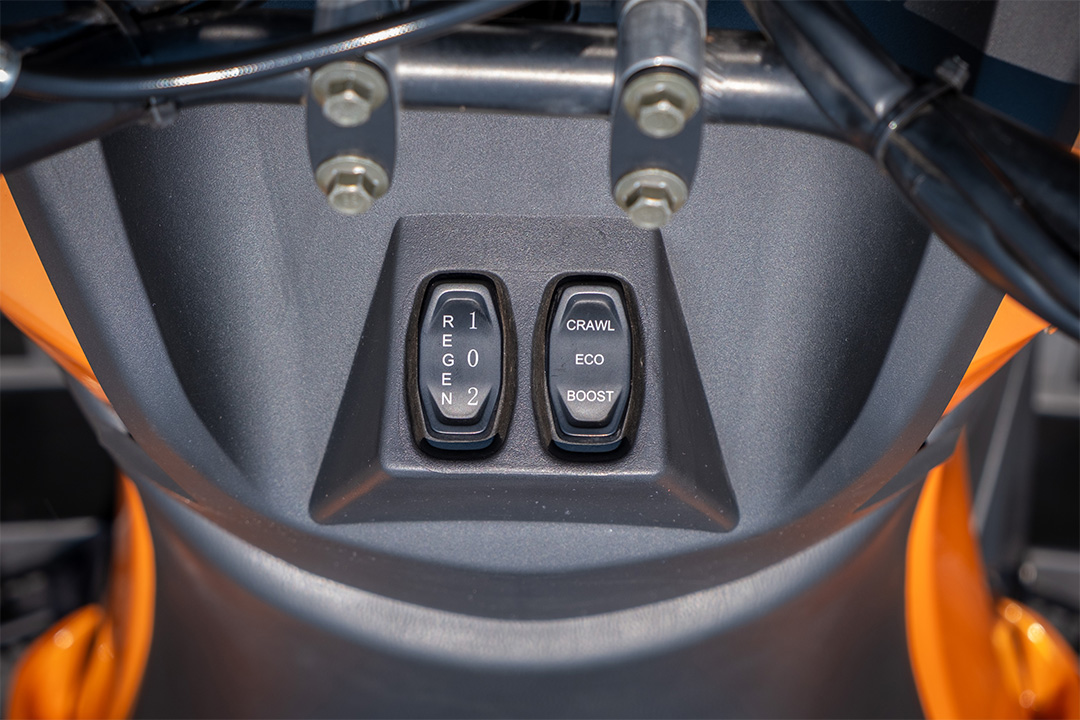

POWER
NORMAL Mode: The Taigen comes equipped with three distinct power modes so you can tailor your ride to the terrain and your needs.
ECO Mode: Optimized for maximum efficiency and extended range, making it the ideal choice for daily rides and long-distance cruising.
BOOST Mode: Unleashes the full potential of the Taigen, providing maximum torque and top speed for adrenaline-packed off-road adventures.

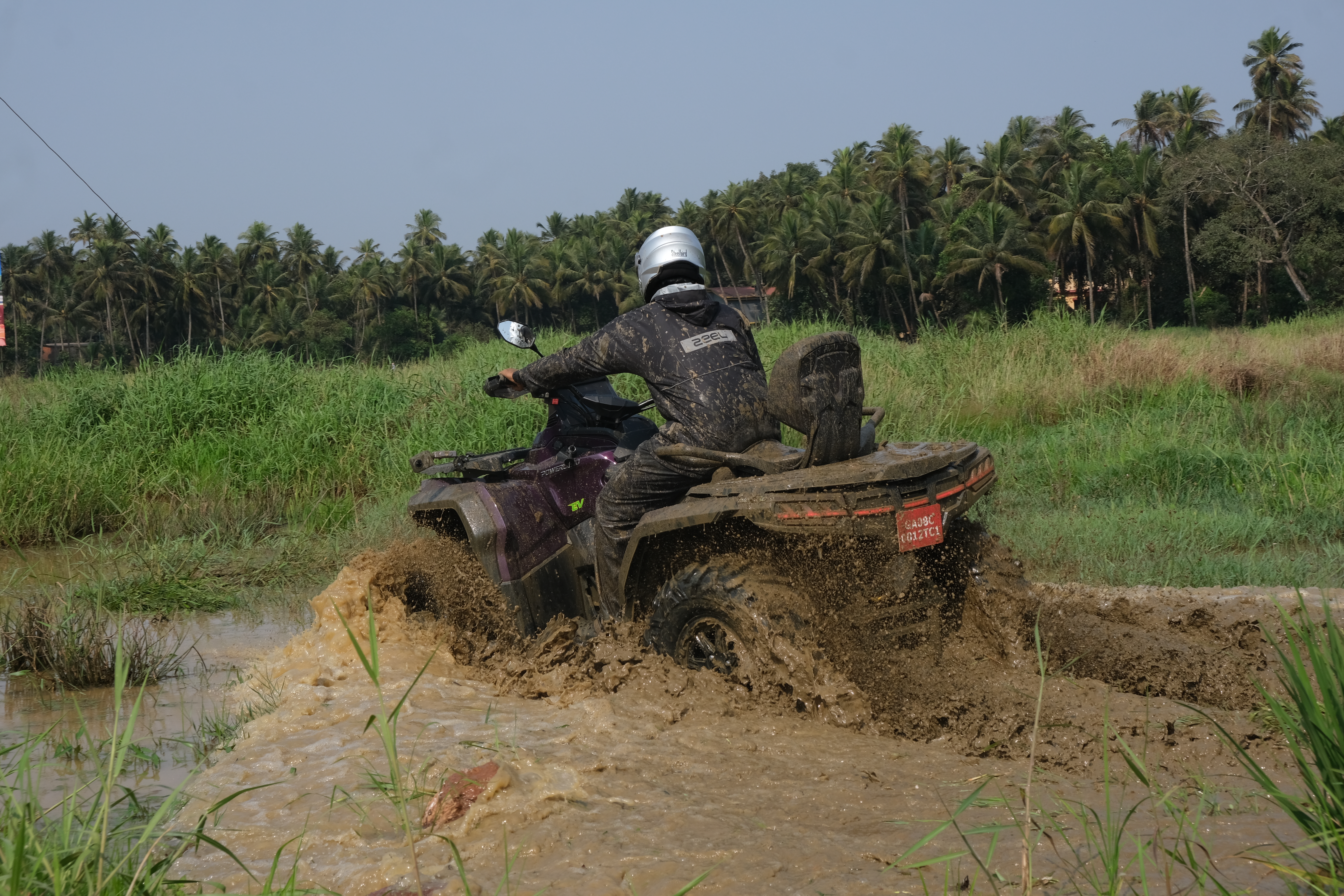

TWO SPEED TRANSMISSION WITH DIFF LOCK
The Taigen pairs a two-speed gearbox with front and rear differential locks to help you conquer the toughest terrain with confidence.
High gear: Unlocks highway-ready performance with top speeds up to 90 km/h for smooth, efficient cruising.
Low gear: Delivers powerful low-end torque to climb extreme gradients, tow heavier loads, and minimize energy use extending runtime for long work shifts.
The result: versatile, efficient performance—instant punch when you need it and sustained endurance when the job demands.

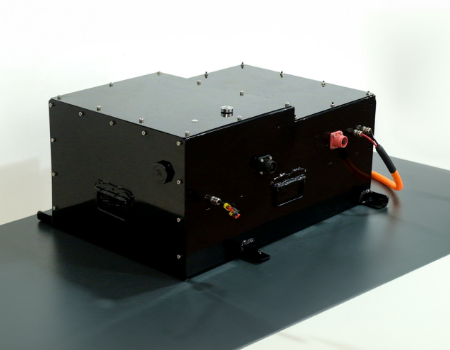

BATTERY TECHNOLOGY
POWERLAND Taigen is equipped with the best-in-class LiFePO4 Blade batteries with a capacity of 16.7 kWh, achieving up to 130 km (80 miles) of range on a single charge in eco mode.

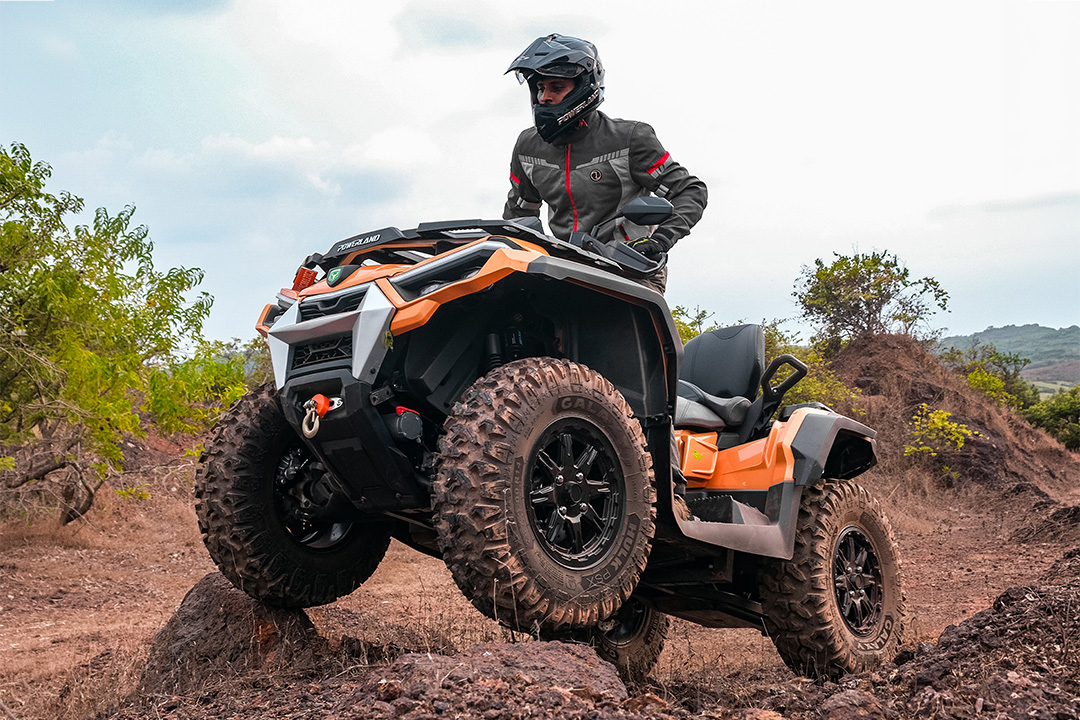

REGENERATIVE BRAKING
Regenerative Braking Like Never Before to match its high-performance capabilities, the Taigen is one of the first ATVs to feature three levels of regenerative braking. This advanced system not only helps you decelerate efficiently but also converts braking energy back into battery power enhancing range while giving you more control over your ride.

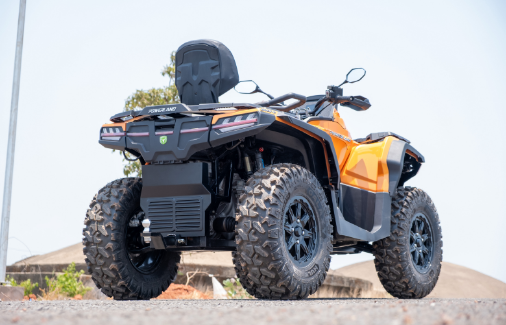

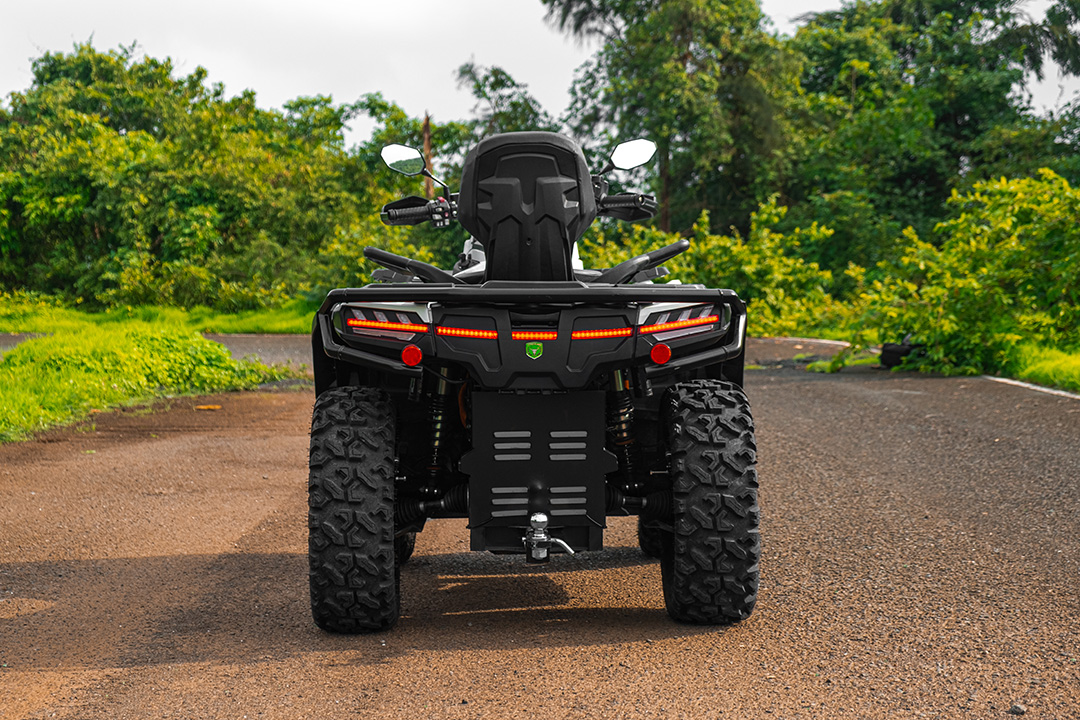

ZERO EMISSION
ATVs contribute to much higher emissions up to 35 Co-g/kWh, with the Powerland Tachyon you could save up to 12 tonnes of CO2 emissions over 5
